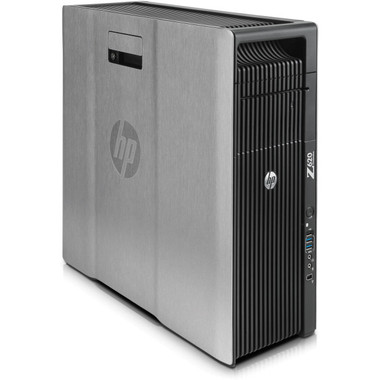

HP Z620 Workstation

HP Z620 Workstation - Single CPU (CTO)

Usually ships in 24 hours
Related Products
Product Videos
Also Viewed
By Category
Other Details
  • Product Description

    More versatile than ever before. With up to 24 discrete processor cores, the HP Z620 Workstation packs a ton of computing and visualization power into a quiet, compact footprint. This dual-socket system helps you boost productivity with next-generation Intel Xeon processors and support for multiple displays. With its innovative design, the HP Z620 Workstation gives you a near-silent computing solution in a form factor that’s a perfect fit for space-constrained environments. And for easy servicing and upgrades, it features a completely tool-less chassis with integrated handles and a tool-free power supply.

    The performance you demand. Get massive system performance in a small footprint with the next evolution in system architecture, setting the standard for versatility with support for both Intel® Xeon® processor E5-2600 v2 and E5-1600 v2 families. Now with up to 24 cores, the HP Z620 powerhouse supports a full range of processors, to help you get more done every minute.

    Support up to 192 GB of the latest generation of system memory with 12 DIMM slots and integrated DDR3-1866 (Transfer rates up to 1866 MT/s) memory subsystem. Ideal for complex data sets and the demands of a 64-bit environment. Take advantage of an 800 W 90% efficient power supply perfect for high-end graphics. Connect in a flash with 4X USB 3.0 bandwidth on an optional highperformance Thunderbolt™ 2.0 port on the HP Z620.

    Bring your ideas to life, faster.

    The HP Z620 is designed to support next-generation PCI express Gen3 graphics technology that doubles the bandwidth in and out of the card. The HP Z620 offers a huge variety of professional graphics from NVIDIA® and AMD—from Pro 2D to Extreme 3D. With an 800W 90% efficient power supply and support for up to eight displays, the HP Z620 gives you the freedom of doing and seeing more.

    Get the power to realize your vision with the new family of NVIDIA® Quadro® K-series professional graphics featuring NVIDIA’s most powerful GPU architecture ever—NVIDIA® Kepler. Whether you’re creating revolutionary products or telling spectacularly vivid visual stories, Quadro® helps you do it better and faster. Offering support for up to eight independent displays and robust OpenGL support, NVIDIA® graphics are fully certified and optimized with industry-leading applications from AutoDesk, Solidworks, Adobe® and many others. The HP Z620 offers an expanded portfolio of NVIDIA graphics solutions over its predecessor. And for the first time in its product category, the HP Z620 can fill your high-performance GPU computing needs with the NVIDIA® Tesla C2075 as part of NVIDIA's Maximus solution.

    Modify your machine. Build the HP Z620 Workstation the way you want with multiple SATA and SAS RAID configuration options that support a wide range of high-performance, high capacity storage solutions.


    ram.png Processor (CPU): Choose option
    ram.png Memory (RAM): Up to 12 DIMM slots with 2 CPUs, up to 192 GB (96 GB With 1 CPU), 8-channel ECC DDR3-1866 (Transfer rates up to 1866 MT/s); 4 channels per CPU
    graphics-card-icone-5112-128.png Graphics: 2 x PCI Express (x16) Graphics slot

    Professional 2D: NVIDIA® NVS™ 310, NVIDIA® NVS™ 315, NVIDIA® NVS™ 510; Entry 3D: NVIDIA® Quadro® 410, NVIDIA® Quadro® K600, AMD FirePro™ V3900; Mid-range 3D: NVIDIA® Quadro® K2000; High-end 3D: NVIDIA® Quadro® K4000, AMD FireProTM W7000, NVIDIA® Quadro® K5000, NVIDIA® Quadro® K6000, NVIDIA® Tesla™ K20c, NVIDIA® Tesla™ K40, NVIDIA® Quadro® Sync (GPU)
    harddrive.png Hard Disk: Up to (5) 3.5-inch 7200 rpm SATA drives: 500 GB, 1, 2, 3 TB, 15 TB max; Up to (5) 2.5-inch 10K rpm SATA drives: 300 GB SFF, 1.5 TB max; Up to (6) 2.5-inch 10K rpm SATA
    drives: 250, 500, 1000 GB SFF, 6 TB max; Up to (6) 2.5-inch 10K rpm SAS drives: 300, 600, 900 GB, 1.2 TB SFF, 7.2 TB max; Up to (5) 3.5-inch 15K rpm SAS drives: 300, 450,
    600 GB, 3 TB max; Up to (6) 2.5-inch SATA solid state drives: 128, 180, 240, 256, 480, 512 GB, 1 TB, 3 TB max; Up to (1) 2.5-inch SATA solid state SED drives: 256 GB; Up to (1)
    2.5-inch SATA self-encrypting hard drive (SED HDD): 500 GB; Up to (1) PCIe SSD Fusion ioFX 410 GB PCIe; Up to (2) PCIe SSD HP Z Turbo Drives 256 GB, 512 GB (1 TB max)
    harddrive.png Hard Disk Controller: Integrated 6-channel SATA controller: 2 ports 6 Gb/s + 4 ports 3 Gb/s, RAID 0, 1, 5, 10 capable; Optional SAS controllers: LSI 9217-4i4e 8-port SAS/SATA 6 Gb/s, RAID 0, 1, 10. LSI 9270-8i SAS/SATA, 8-port 6 Gb/s HW RAID 0, 1, 5, 10 capable
    harddrive.png Network Ports: Dual integrated Intel GbE LAN; Infineon TPM 1.2 Controller;
    windows-7-logo.png Operating System: Choose option
    audio-icon-user-andromedavadum1.png Audio: Integrated Intel/Realtek HD ALC262 Audio
    cd-rom-drive.png Optical Drive: DVD-ROM, DVD+/-RW, Slot-load DVD+/-RW, HP Blu-ray Writer
    ram.png Slots: 2 PCI Express Gen3 x16; 1 PCI Express Gen3 x8, 1 PCI Express Gen2 x8 mechanical/x4 electrical; 1 PCI Express Gen2 x4 mechanical/x1 electrical; 1 Legacy PCI
    ram.png Ports: Front: 2 USB 3.0, 1 USB 2.0, 1 IEEE 1394a standard, 1 microphone in, 1 headphone out Rear: 2 USB 3.0, 4 USB 2.0, 1 audio in, 1 audio out, 1 microphone in, 2 PS/2, 2 RJ-45 to integrated Gigabit LAN Internal: 6 USB 2.0
    icon-psu-power-supply-generic.png Power: 800 Watt 90% efficient tool-free power supply
    ram.png Dimensions: 44.45 x 17.15 x 46.48 (H x W x D cm)
    pc-icon-10.png What's in the box: 1x HP Z620 Workstation
    1x Power Lead

    Download HP Z620 Workstation specifications
