Product Overview
Get workstation performance with next-generation graphics at prices you’d expect from a desktop PC. Available as a Convertible Minitower or a Small Form Factor, HP offers the enterprise-class design that fits you best.
Designed to fit your business
Choose the expansive Convertible Minitower or the space-saving Small Form Factor design – both complete with tool-free chassis that make adding hard drives and upgrading memory a snap.
Take advantage of world class architecture with the latest in connectivity for external storage devices and peripherals. Transfer data 10x faster than USB 2.0 ports with four integrated super-speed USB 3.0 ports.
Business-built and environmentally aware – featuring a 90% efficient power supply, low halogen configurations and your choice of ENERGY STAR® qualified configurations.
High performance, no sweat
Increase performance and reduce energy consumption with next-generation 22nm processors, including the Intel Xeon processor E3-1200v2 family and 3rd-generation Intel Core processors.
Give memory intensive applications a boost with 1600 MHz DDR3 memory technology and support for ECC memory configurations to help protect your data integrity.
Keep going at a moment’s notice with Intel Smart Response Technology, a disk cache solution that provides solid state drive like performance, faster boot up times and quick application responsiveness.
Optimize your output with integrated HP Performance Advisor. Run reports, diagnose and fine-tune your workstation specific to your professional applications with just one click.
Next-generation graphics
Take presentations to the next level and bring work to life with integrated Intel® HD Graphics.
Access your high-performance 2D, 3D, video and media-rich applications regardless of where you are. Preinstalled HP Remote Graphics Software gives you the freedom to work remotely without skipping a beat.
Be ready with the bandwidth you need for tomorrow’s generation of PCIe 3D graphics cards from NVIDIA and AMD the moment they’re available.

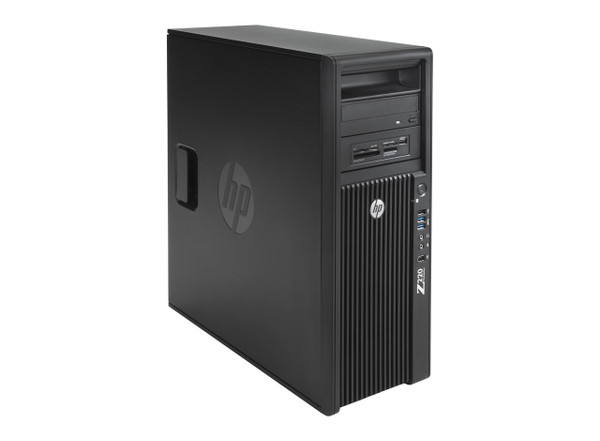

HP Z220 Workstation | |
![]() | Quad Core Intel Xeon E3-1225 v2 (8M Cache, 3.20 GHz / 3.6 GHz Turbo) |
![]() | 4 DIMM slots, up to 32 GB ECC/non-ECC, DDR3 1600 MHz (ECC/non-ECC choice and actual memory speed dependent on processor capability) |
![]() | Integrated: Intel HD Graphics Intel HD Graphics 2500 Intel HD Graphics 4000 Intel HD Graphics P4000; Professional 2D: NVIDIA Quadro NVS 300 (512 MB) NVIDIA Quadro NVS 310 (512 MB) NVIDIA NVS 510 (2 GB); Entry 3D: AMD FirePro V3900 (1 GB) NVIDIA Quadro K600 (1 GB) NVIDIA Quadro 410 (512 MB); Mid-range 3D: NVIDIA Quadro K2000 (2 GB); High-end 3D: NVIDIA Quadro K4000 (3 GB) AMD FirePro W7000 (4 GB) |
![]() | Internal drive bays: 3x 3.5"; External drive bays: 3x 5.25" |
![]() | Integrated SATA (4 ports 3 Gb/s and 2 ports 6 Gb/s) with RAID 0, 1 supported. Requires identical hard drives (speeds, capacity, interface). |
![]() | Integrated Intel 82579LM |
![]() | Choose option |
![]() | Integrated High Definition Realtek ALC221 |
![]() | DVD-ROM, DVD+/-RW, Slot-load DVD+/-RW, HP Blu-ray Writer |
![]() | 1 PCIe Gen3 x16, 1 PCIe Gen2 x4 (x16 connector), 1 PCIe Gen2 x4 (x8 connector), 2 PCIe Gen2 x1, 2 PCI |
![]() | 4x USB 3.0, 5x USB 2.0, 2x microphone, 1x headphone, 1x audio line in, 1x audio line out, 1x RJ-45, 2x PS/2 |
![]() | 400W 90% efficient, wide-ranging, Active Power Factor Correction |
![]() | 17.8 x 45.5 x 44.7 (W x H x D cm) |
![]() | 1x HP Z220 Workstation 1x Power Lead |
