Product Overview
Dell Precision Workstations
Precision is the key element that separates greatness from everything else. Dell Precision is your key tool for creating architectural drawings, performing complex engineering design work or wringing the most from any performance intensive application. Our revolutionary workstation-class products offer voracious productivity, Independent Software Vendor (ISV) certification, superb reliability, and harmonious manageability to maximize your productivity and dependability.
Big performance. Small footprint.
Looking for a high-end workstation that can deliver groundbreaking performance and exceptional processing power in space-constrained environments? Then look no further. Developed in close collaboration with hardware and software partners, the Dell Precision™ T5500 workstation combines a flexible, compact chassis and intelligent power management to help deliver an ideal solution for financial trading floors, performance clusters, render farms and other crowded, power sensitive environments. Designed for performance, reliability and scalability in environments where space is at a premium, the Dell Precision T5500 allows you to power through complex tasks and complete your projects faster than the previous generation.
• Next-generation 32nm six-core Intel® Xeon® 5600 series processors ignite stunning levels of performance unleashed by Intel Quick Path Interconnect Technology that provides high-speed interconnects per independent processing core
• Outstanding performance for memory-intensive applications delivered with the help of an integrated memory controller on the processor with dedicated three-channel high-speed memory architecture, multi-level shared cache and high-speed point-to-point interconnects
• Memory scalability up to 72GB with DDR3 ECC registered DIMMs
• Dual-native PCIe x16 Gen 2 graphics slots for outstanding graphics performance, cost-effective quad-monitor support and GPU-based personal super-computing
• Designed to deliver increased performance for single and multi-threaded applications with advanced engineering and thermal design enabling extended use of Intel Turbo Boost Technology

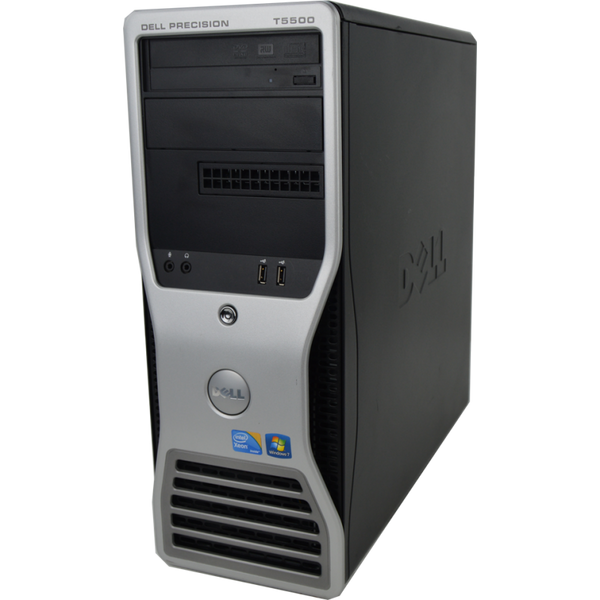

Dell Precision T5500 | |
 Processor (CPU): | Choose Option |
 Memory (RAM): | Three channel; Up to 72GB 1333MHz ECC Registered DIMM memory; 6 DIMM slots (2 per channel); |
 Graphics: | Support for 2 PCI Express® x16 Gen 2 graphics cards up to 150W. High End 3D: NVIDIA Quadro 5000, NVIDIA Quadro 4000, NVIDIA Quadro FX5800, NVIDIA Quadro FX4800; Mid-range 3D: ATI FirePro V7800, ATI FirePro V5800, NVIDIA Quadro FX 3800, NVIDIA Quadro FX 1800; Entry 3D: ATI FirePro V4800, NVIDIA Quadro FX 580; Professional 2D ATI FirePro 2260, NVIDIA Quadro NVS 420, NVIDIA Quadro NVS 295; |
 Hard Disk: | Two internal 3.5" HDD bays; two external 5.25" optical bays, |
| Hard Disk Controller: | SATA 3.0GB/s host controller (part of the integrated Intel ICH10R I/O controller hub) |
 Network Ports: | Integrated Broadcom® 5754 Gigabit Ethernet controller. |
 Operating System: | Choose option |
 Audio: | Integrated High-Definition Audio (Rev 1.0 Specification) implemented with a two-chip audio solution comprising the ADI 1984a |
 Optical Drive: | DVD-ROM, DVD+/-RW, Slot-load DVD+/-RW, HP Blu-ray Writer |
 Slots: | Two PCIe x16 slots wired as x8 (half length); two PCIe x16 Gen 2 graphics slots up to 150W each; one PCI-X 64bit/100MHz slot with support for 3.3V or universal cards; one PCI 32-bit/33MHz 5V slot |
 Ports: | Eleven USB 2.0: two on front panel, six on back panel, three internal: one serial; one parallel; two PS/2; one RJ-45; stereo line-in and headphone line-out on back panel; microphone and headphone connector on front panel; one ESATA port on back panel, front and rear IEEE 1394a ports |
 Power: | 875W, 85% efficient PFC PSU |
| Dimensions: | 44.8 x 17.1 x 47.1 (W x H x D cm) |
 What's in the box: | 1x Dell Precision T5500 1x Power Lead |
