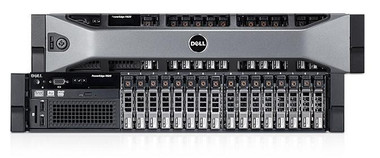

DELL PowerEdge R820 - Dual CPU (CTO)

A high-performance 4-socket, 2U rack server, the DELL PowerEdge R820 is designed for dense virtualization and scalable database applications.

Designed to excel at running a wide range of applications and virtualization environments for both mid-size and large enterprises, the DELL PowerEdge R820 rack server is a compute-intensive performance platform with highly scalable memory (up to 1.5TB) and impressive I/O capabilities to match. With four Intel Xeon E5 processors, and the ability to support dual RAID controllers, the R820 can readily handle very demanding, mission critical workloads, like Enterprise Resource Planning (ERP), data warehousing, e-commerce, Virtual Desktop Infrastructure (VDI), databases, and data node High Performance Computing (HPC.)

Manage data overload

Keep pace with the explosion of data in the virtual age with the flexible, powerful I/O and storage capabilities of the R820. Up to 16 internal hard drives and integrated PCIe Gen3-enabled expansion slots greatly increase your capacity, while optional hot-plug, front-access PCIe SSDs (up to 4) enable performance-enhancing, in-box storage tiering. Moreover, DELL Select Network Adapters, our flexible embedded NIC technology, let you choose the right network fabric to match your needs without using up a valuable PCIe slot.

Accelerate the solution
Boost the performance of your HPC or 2D VDI environment by combining the PowerEdge R820’s memory density with an optional Graphics Processing Unit (GPU) accelerator. Choose from a range of GPU options for greater assisted performance.

Virtualize more with the R820

Maximize your data center’s application capacity by expanding your virtual environment using the PowerEdge R820’s large memory footprint, I/O options, flexible fabric choices, and up to 32 cores in a four-processor configuration. Choose an industry-leading hyper-visor and take advantage of our system management capability to manage both physical and virtual assets. The R820 can also help maximize your virtual machines’ up-time using redundant fail-safe hyper-visors on its Internal Dual SD Module. Finally, DELL’s Virtual Integrated System (VIS) solution lets you enable complex virtualization environments in just a few mouse clicks.

The PowerEdge server line

The PowerEdge family is engineered with the right combination of features and performance scalability to handle tough workloads for both large and small data center environments. The DELL OpenManage™ systems management portfolio includes DELL Remote Access Controller (iDRAC) with Lifecycle Controller. This embedded feature helps IT Administrators manage DELL servers in physical, virtual, local and remote environments, operating in-band or out-of-band, with or without a systems management software agent. OpenManage integrates and connects to leading third-party systems management solutions you may already own, so you can maintain your single point of control and capitalize on your existing investment. OpenManage simplifies the lifecycle of deploying, updating, monitoring and maintaining your DELL PowerEdge servers.

DELL PowerEdge R820 - Dual CPU Rack Server
Processor (CPU):	Intel Xeon processor E5-4600 product family
Memory (RAM):	Up to 1.5TB (48 DIMM slots): 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MHz
Graphics:	N/A
Hard Disk:	Up to sixteen 2.5” hot-plug SAS, SATA, or SSD
Raid Controller:	Internal controllers: PERC H310 PERC H710 PERC H710P External HBAs (RAID): PERC H810 External HBAs (non-RAID): 6Gbps SAS HBA
Network Ports:	Broadcom® Quad Port 1GbE BASE-T (no TOE or iSCSI offload) Intel Quad Port 1GbE BASE-T (no TOE or iSCSI offload) Intel Dual Port 10GbE BASE-T with 2 x 1GbE (FCoE capability enabled on the 10GbE ports) Broadcom Dual Port 10GbE SFP+ with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports)
Faceplate:	Included
Remote Managment:	iDRAC7 Express (default)
Optical Drive:	-
Slots:	7 PCIe slots:  Two x16 half-length, full-height,  One x8 half-length, full-height,  Three x8 half-length, half-height,  One x8 half-length, full-height for the RAID controller
Ports:	-
Power:	Platinum efficiency 750W or Platinum+ efficiency 1100W power supplies Auto-ranging power supplies
Dimensions:	44.31 x 8.64 x 68.07 (W x H x D cm)
What's in the box:	1x DELL PowerEdge R820 2U rack server Power Lead(s)

 DELL PowerEdge R820 server specifications sheet
