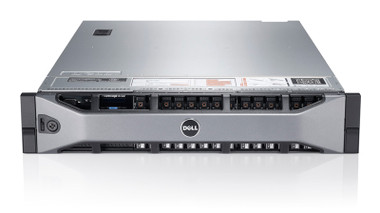

Dell PowerEdge R720 Server Dual CPU (CTO)

Dell PowerEdge R720 PowerEdge R720 • Up to 24 DIMMs • PCIe 3.0-enabled expansion slots • Choice of NIC technologies • Optional hot-plug, front-access PCIe SSDs • Optional internal GPU accelerators Setting the standard for feature flexibility in a 2-socket, 2U rack server, the Dell™ PowerEdge™ R720 is built to run complex workloads using its highly scalable memory, I/O capacity and flexible network options.

Designed to excel at running a wide range of applications and virtualization environments for both mid-size and large enterprises, the Dell PowerEdge R720 rack server is a general purpose platform with highly expandable memory (up to 768GB) and impressive I/O capabilities to match. With Intel® Xeon® E5-2600 processors, and the ability to support dual RAID controllers, the R720 can readily handle very demanding workloads, such as data warehouses, e-commerce, virtual desktop infrastructure (VDI), databases and high performance computing (HPC) as a data node. Manage data overload Keep pace with the explosion of data in the virtual age with the flexible, powerful I/O and storage capabilities of the R720. Up to 16 internal hard drives and integrated PCI Express® 3.0-capable expansion slots greatly increase your capacity, while optional hot-plug, front-access PCIe SSDs (up to 4) enable performance-enhancing, in-box storage tiering. Moreover, Dell Select Network Adapters, our flexible NIC technology, let you choose the right network fabric to match your needs without using up a valuable PCIe slot. Accelerate the solution Boost the performance of your HPC or VDI environment by combining the PowerEdge R720’s memory density with an optional GPU accelerator (some with over 500 cores). Choose from a range of GPU options for greater assisted performance. Virtualize more with the R720 Maximize your data center’s application capacity by expanding your virtual environment using the PowerEdge R720’s large memory footprint. Choose an industry-leading hypervisor and take advantage of our system management capability to manage both physical and virtual assets. The R720 can help maximize your virtual machines’ uptime with redundant failsafe hypervisors. Finally, Dell’s Virtual

Integrated System™ (VIS) solution lets you enable complex virtualization environments in just a few mouse clicks. The PowerEdge server line The PowerEdge family is engineered with the right combination of features and performance scalability to handle tough workloads for both large and small data center environments. The Dell OpenManage™ systems management portfolio includes the Integrated Dell Remote Access Controller (iDRAC) with Lifecycle Controller. This embedded feature helps IT Administrators manage Dell servers in physical, virtual, local and remote environments, operating in-band or out-of-band, with or without a systems management software agent. OpenManage integrates and connects to third-party systems management solutions so you can maintain your single point of control and capitalize on your existing investment. OpenManage simplifies the lifecycle of deploying, updating, monitoring and

PowerEdge R720 • Up to 24 DIMMs • PCIe 3.0-enabled expansion slots • Choice of NIC technologies • Optional hot-plug, front-access PCIe SSDs • Optional internal GPU accelerators

DELL POWEREDGE R710 - DUAL CPU RACK SERVER
Processor (CPU):	Quad-core or six-core Intel Xeon processor E5-2600 series 2 CPU sockets
Memory (RAM):	Up to 768GB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s
Graphics:	15-pin VGA
Hard Disk:	Up to eight 3.5” drives or up to sixteen 2.5” drives, 32TB Max Internal Storage
Raid Controller:	Internal: PERC H710 External HBAs (RAID): PERC H810 External HBAs (non-RAID): 6Gbps SAS HBA LSI 9207-8i HBA
Network Ports:	4x embedded Broadcom NetXtreme II 5709c Gigabit Ethernet NIC with failover and load balancing; TOE (TCPIP Offload Engine) supported on Microsoft Windows Server 2003 SP1 or higher with Scalable Networking Pack; Optional 1GBe and 10GBe add-in NICs
Faceplate:	Excluded
Remote Managment:	iDrac 7
Optical Drive:	Slim optical drive bay
Slots:	1 x PCIe Full-Height/Full-length PCIe x16 3 x PCIe Full-Height/Full-length PCIe x8 3 x PCIe Half-Height/Half-length PCIe x8
Ports:	2 front
Power:	Auto-ranging Titanium efficiency, hot-plug redundant 750W AC power supply; Auto-ranging Platinum efficiency, hot-plug redundant 495W, 750W or 1100W AC power supply; 1100W DC power supply
Dimensions:	48.24 x 8.73 x 75.58 (W x H x D cm)
What's in the box:	1x DELL PowerEdge R720 - Dual CPU rack server Power Lead(s)
